产品属性

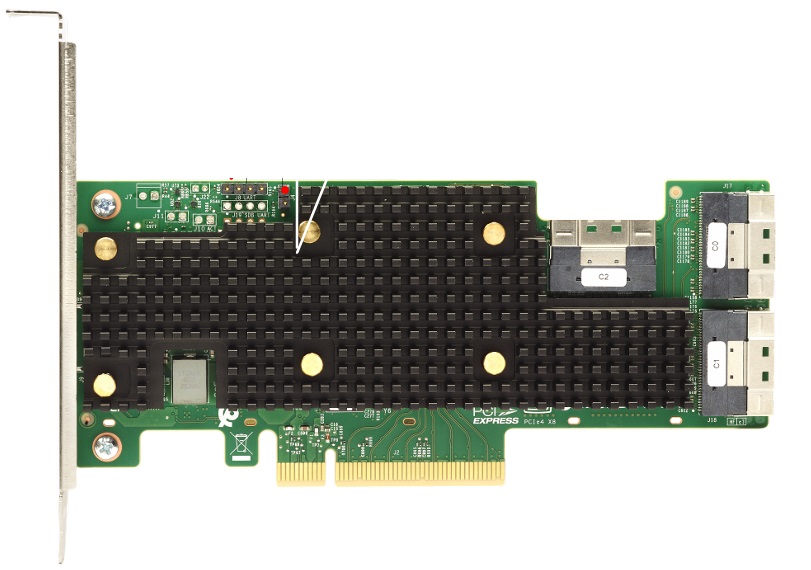

产品名称: | Broadcom eHBA9600-24i 【立即订购】 |
产品编号: | NO240527153339 |
产品价格: | ¥2350.0 |
产地: | 泰国 |
MPN编码: | 05-50111-01 |
UPC: | 830343007707 |
产品描述
Lifecycle | Active |
---|---|
Distributor Inventory | No |
Brackets | Full height and low profile |
Data Transfer Rates | 22.5, 12 and 6Gb/s SAS and 6Gb/s SATA |
Devices Supported | SAS/SATA: 240; NVMe: up to 32 |
Generation | 24G |
Host Bus Type | x8 lane PCI Express 4.0 |
Internal Ports | 24 |
Management Software | LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure) |
MTBF | > 5,000,000 hours at 40° C |
Operating Humidity | 5% to 90% Non-condensing |
Operating Temperature°C | 0°C to 55°C |
OS Support | Microsoft Windows, VMware vSphere, VMware vSphere/ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu Linux, CentOS Linux, Debian Linux, Oracle Enterprise Linux, FreeBSD |
Physical Dimensions | 155.52 (+/-0.13) mm x 68.77 (+/-0.13) mm |
Regulatory Certifications | Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15, Subpart B, Class A; ANSI C63.4:2014; CISPR 32:2008) CB (IEC 62368-1:2014 (Second edition); EN 62368-1:2014+A11: 2017), Japan (V-3/2015.04, Class A; V-4/2012.04; VCCI-CISPR 32:2016; CISPR 32:2015), Morocco (CMIM) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020); RoHS, WEEE |
Typical Power | 20W |
Warranty | 3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba |
What's in the box | 9600-24i HBA, Low Profile Bracket, Bracket, FH (attached) |
